304708 - Toledo Timing Tool Kit - Ford & Mazda

Tools
  • Suitable for popular Ford and Mazda 1.4L – 2.5L DOHC petrol and 1.6L – 2.4Ldiesel engine applications
  • For the locking of the camshaft, crankshaft and tensioners during the removal and installation of the engine timing belt or chain and other engine servicing and repairs

ATTRIBUTES

Fuel TypePetrol & Diesel
SuitsFord:
Fiesta (WP - WS) 1.4L - 2.0L 2004 - 2010
Fiesta (WS - WT) 1.6L (Diesel) 2009 - 2012
Focus (LR - LW) 1.6L - 2.0L 2000 - 2012
Mondeo (HA - MC) 2.0L, 2.3L 1995 - 2012
Transit (Diesel) 2.4L 2001 - 2012

Honda:
Integra 1.8L (B18) 1993 - 2001

Mazda:
CX-7 2.3L (MZR) 2006 - 2009
Mazda 2 1.5L (ZY) 2007 - 2012
Mazda 3 2.0L, 2.3L 2004 - 2012
Mazda 6 2.0L - 2.5L 2002 - 2012
MX5 2.0L (MZR) 2005 - 2012
Tribute 2.3L (L3) 2004 - 2008

Volvo:
C30 (TDi) 1.6L (D4164T) 2010 - 2012
C30, S40, V50 (TDi) 2.0L (D4204T) 2009 - 2010

*Abbreviated list only, for complete vehicle application listings please use the Tridon Part Finder

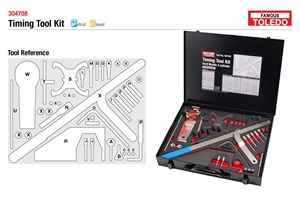

ITEM CONTENTS

NameQty
A - Tensioner Locking Pin1
B - Chain Tensioner Locking Pin1
C - Locking Pins1
D - Injection Pump Locking Pin1
E - Camshaft Locking Pin1
F - Camshaft Locking Pin1
G - Crankshaft Locking Pin1
H - Camshaft Locking Pin1
I - Locking Pin1
J - Camshaft Timing Pins1
K - Flywheel Locking Tool Adaptors1
L - Crankshaft Timing Pin1
M - Crankshaft Timing Pin1
N - Locking Pin1
P - Flywheel Locking Pin1
Q - Flywheel Timing Pin1
R - Camshaft Alignment Tool1
S - Camshaft Sprocket Locking Tool1
T - Flywheel Locking Tool1
U - Camshaft Setting Bar1
V - Flywheel Locking Tool Adaptors1
W - Crankshaft Pulley Holding Tool1
X - Flywheel Locking Tool Adaptors1
